Application;
Energy distribution network, street lighting system.Because concentric conductor acts as a fuse there is no rick of accident.

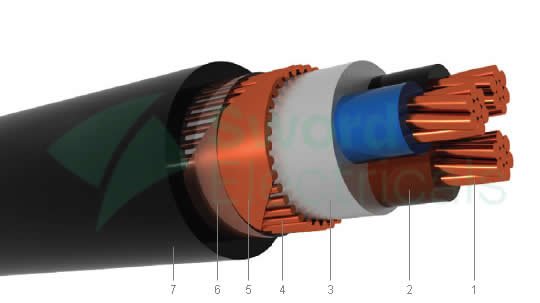

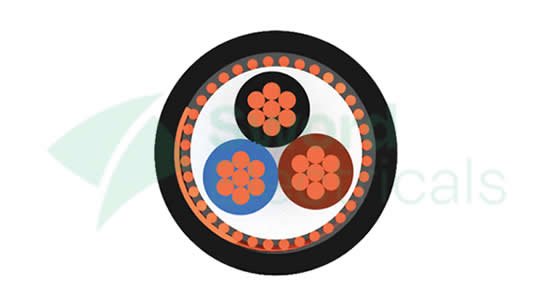

Construction;
1. Solid or stranded copper conductor
2. PVC insulation
3. PVC filler
4. Concentric screen
5. Copper tape as binder
6. Polyester tape
7. PVC outer sheath
Construction;
|
Technical Features
|
|
Rated Cross Section
|
Overall Diameter of Cable (Approx)
|
Current Carrying Capacity
|
Conductor DC Resistance
|
Short Circuit Current
|
Net Weight (Approx)
|
Delivery Length (Approx)
|
|
mm2
|
mm
|
|
|
ohm/km (20°C)
|
ohm/km (70°C)
|
kA (1 sn)
|
kg/km
|
mt
|
|
Air
|
Ground
|
|
2 Cores
|
|
2 x 1,5
|
12,80
|
21
|
29
|
12,1
|
14,478
|
0,17
|
220
|
1000
|
|
2 x 2,5
|
13,60
|
28
|
38
|
7,41
|
8,866
|
0,29
|
270
|
1000
|
|
2 x 4
|
15,20
|
37
|
49
|
4,61
|
5,516
|
0,46
|
365
|
1000
|
|
2 x 6
|
16,20
|
47
|
61
|
3,08
|
3,685
|
0,69
|
450
|
1000
|
|
2 x 10
|
18,60
|
64
|
82
|
1,83
|
2,190
|
1,15
|
650
|
1000
|
|
2 x 16
|
20,40
|
85
|
105
|
1,15
|
1,376
|
1,84
|
870
|
1000
|
|
2 x 25
|
24,00
|
114
|
136
|
0,727
|
0,870
|
2,88
|
1.200
|
1000
|
|
2 x 35
|
26,00
|
139
|
163
|
0,524
|
0,627
|
4,03
|
1.480
|
1000
|
|
2 x 50
|
29,00
|
169
|
193
|
0,387
|
0,463
|
5,75
|
1.940
|
1000
|
|
2 x 70
|
33,40
|
212
|
236
|
0,268
|
0,321
|
8,05
|
2.690
|
1000
|
|
2 x 95
|
39,30
|
260
|
281
|
0,193
|
0,231
|
10,93
|
3.670
|
1000
|
|
2 x 120
|
42,30
|
300
|
317
|
0,153
|
0,183
|
13,80
|
4.500
|
1000
|
|
2 x 150
|
46,70
|
340
|
352
|
0,124
|
0,148
|
17,25
|
5.390
|
1000
|
|
2 x 185
|
51,30
|
388
|
394
|
0,0991
|
0,119
|
21,28
|
6.780
|
1000
|
|
2 x 240
|
57,50
|
453
|
448
|
0,0754
|
0,090
|
27,60
|
8.650
|
1000
|
|
2 x 300
|
63,30
|
512
|
496
|
0,0601
|
0,072
|
34,50
|
10.790
|
500
|
|
2 x 400
|
70,70
|
580
|
550
|
0,0470
|
0,056
|
41,20
|
13.530
|
500
|
|
3 Cores
|
|
3 x 1,5
|
13,30
|
20
|
27
|
12,1
|
14,478
|
0,17
|
245
|
1000
|
|
3 x 2,5
|
14,20
|
26
|
36
|
7,41
|
8,866
|
0,29
|
305
|
1000
|
|
3 x 4
|
15,90
|
34
|
47
|
4,61
|
5,516
|
0,46
|
415
|
1000
|
|
3 x 6
|
17,00
|
44
|
59
|
3,08
|
3,685
|
0,69
|
520
|
1000
|
|
3 x 10
|
19,60
|
60
|
79
|
1,83
|
2,190
|
1,15
|
760
|
1000
|
|
3 x 16
|
21,70
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.030
|
1000
|
|
3 x 25
|
25,60
|
108
|
133
|
0,727
|
0,870
|
2,88
|
1.460
|
1000
|
|
3 x 35
|
28,50
|
132
|
160
|
0,524
|
0,627
|
4,03
|
1.860
|
1000
|
|
3 x 50
|
31,50
|
160
|
190
|
0,387
|
0,463
|
5,75
|
2.430
|
1000
|
|
3 x 70
|
36,20
|
202
|
234
|
0,268
|
0,321
|
8,05
|
3.380
|
1000
|
|
3 x 95
|
41,50
|
249
|
280
|
0,193
|
0,231
|
10,93
|
4.560
|
1000
|
|
3 x 120
|
45,10
|
289
|
319
|
0,153
|
0,183
|
13,80
|
5.640
|
1000
|
|
3 x 150
|
49,20
|
329
|
357
|
0,124
|
0,148
|
17,25
|
6.720
|
1000
|
|
3 x 185
|
54,80
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
8.510
|
1000
|
|
3 x 240
|
61,40
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
10.860
|
1000
|
|
3 x 300
|
68,60
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
13.640
|
500
|
|
3 x 400
|
77,30
|
577
|
579
|
0,0470
|
0,056
|
41,20
|
17.250
|
500
|
|
4 Cores
|
|
3 x 10 + 6
|
20,70
|
60
|
79
|
1,83
|
2,190
|
1,15
|
860
|
1000
|
|
3 x 16 + 10
|
22,80
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.170
|
1000
|
|
3 x 25 + 16
|
26,50
|
108
|
133
|
0,727
|
0,870
|
2,88
|
1.640
|
1000
|
|
3 x 35 + 16
|
28,50
|
132
|
160
|
0,524
|
0,627
|
4,03
|
1.990
|
1000
|
|
3 x 50 + 25
|
32,20
|
160
|
190
|
0,387
|
0,463
|
5,75
|
2.690
|
1000
|
|
3 x 70 + 35
|
37,00
|
202
|
234
|
0,268
|
0,321
|
8,05
|
3.720
|
1000
|
|
3 x 95 + 50
|
42,70
|
249
|
280
|
0,193
|
0,231
|
10,93
|
5.020
|
1000
|
|
3 x 120 + 70
|
47,20
|
289
|
319
|
0,153
|
0,183
|
13,80
|
6.380
|
1000
|
|
3 x 150 + 70
|
50,60
|
329
|
357
|
0,124
|
0,148
|
17,25
|
7.390
|
1000
|
|
3 x 185 + 95
|
57,40
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
9.520
|
1000
|
|
3 x 240 + 120
|
63,50
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
11.990
|
1000
|
|
3 x 300 + 150
|
70,70
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
15.000
|
500
|
|
4 x 1,5
|
14,10
|
20
|
27
|
12,1
|
14,478
|
0,17
|
280
|
1000
|
|
4 x 2,5
|
15,10
|
26
|
36
|
7,41
|
8,866
|
0,29
|
355
|
1000
|
|
4 x 4
|
17,00
|
34
|
47
|
4,61
|
5,516
|
0,46
|
485
|
1000
|
|
4 x 6
|
18,00
|
44
|
59
|
3,08
|
3,685
|
0,69
|
610
|
1000
|
|
4 x 10
|
21,10
|
60
|
79
|
1,83
|
2,190
|
1,15
|
900
|
1000
|
|
4 x 16
|
22,80
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.220
|
1000
|
|
4 x 25
|
27,20
|
108
|
133
|
0,727
|
0,870
|
2,88
|
1.770
|
1000
|
|
4 x 35
|
30,90
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.280
|
1000
|
|
4 x 50
|
34,80
|
160
|
190
|
0,387
|
0,463
|
5,75
|
3.030
|
1000
|
|
4 x 70
|
39,60
|
202
|
234
|
0,268
|
0,321
|
8,05
|
4.180
|
1000
|
|
4 x 95
|
46,00
|
249
|
280
|
0,193
|
0,231
|
10,93
|
5.710
|
1000
|
|
4 x 120
|
49,80
|
289
|
319
|
0,153
|
0,183
|
13,80
|
7.020
|
1000
|
|
4 x 150
|
54,30
|
329
|
357
|
0,124
|
0,148
|
17,25
|
8.400
|
1000
|
|
4 x 185
|
60,80
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
10.670
|
1000
|
|
4 x 240
|
68,00
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
13.600
|
1000
|
|
4 x 300
|
75,40
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
17.110
|
500
|
|
4 x 400
|
85,20
|
577
|
579
|
0,0470
|
0,056
|
41,20
|
21.580
|
500
|
|
5 Cores
|
|
4 x 10 + 6
|
22,40
|
60
|
79
|
1,83
|
2,190
|
1,15
|
1.020
|
1000
|
|
4 x 16 + 10
|
24,90
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.390
|
1000
|
|
4 x 25 + 16
|
29,40
|
108
|
133
|
0,727
|
0,870
|
2,88
|
2.000
|
1000
|
|
4 x 35 + 16
|
31,70
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.470
|
1000
|
|
4 x 50 + 25
|
36,10
|
160
|
190
|
0,387
|
0,463
|
5,75
|
3.350
|
1000
|
|
4 x 70 + 35
|
41,80
|
202
|
234
|
0,268
|
0,321
|
8,05
|
4.630
|
1000
|
|
4 x 95 + 50
|
48,50
|
249
|
280
|
0,193
|
0,231
|
10,93
|
6.300
|
1000
|
|
4 x 120 + 70
|
53,60
|
289
|
319
|
0,153
|
0,183
|
13,80
|
7.890
|
1000
|
|
4 x 150 + 70
|
58,10
|
329
|
357
|
0,124
|
0,148
|
17,25
|
9.300
|
1000
|
|
4 x 185 + 95
|
64,80
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
11.870
|
1000
|
|
4 x 240 + 120
|
71,80
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
15.000
|
500
|
|
4 x 300 + 150
|
80,50
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
18.910
|
500
|
|
5 x 1,5
|
14,40
|
20
|
27
|
12,1
|
14,478
|
0,17
|
315
|
1000
|
|
5 x 2,5
|
16,00
|
26
|
36
|
7,41
|
8,866
|
0,29
|
405
|
1000
|
|
5 x 4
|
18,20
|
34
|
47
|
4,61
|
5,516
|
0,46
|
570
|
1000
|
|
5 x 6
|
19,50
|
44
|
59
|
3,08
|
3,685
|
0,69
|
710
|
1000
|
|
5 x 10
|
22,80
|
60
|
79
|
1,83
|
2,190
|
1,15
|
1.070
|
1000
|
|
5 x 16
|
25,30
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.460
|
1000
|
|
5 x 25
|
30,30
|
108
|
133
|
0,727
|
0,870
|
2,88
|
2.140
|
1000
|
|
5 x 35
|
33,00
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.760
|
1000
|
|
5 x 50
|
37,50
|
160
|
190
|
0,387
|
0,463
|
5,75
|
3.640
|
1000
|
|
5 x 70
|
43,80
|
202
|
234
|
0,268
|
0,321
|
8,05
|
5.080
|
1000
|
|
5 x 95
|
50,90
|
249
|
280
|
0,193
|
0,231
|
10,93
|
6.930
|
1000
|
|
5 x 120
|
55,80
|
289
|
319
|
0,153
|
0,183
|
13,80
|
8.530
|
1000
|
|
5 x 150
|
61,20
|
329
|
357
|
0,124
|
0,148
|
17,25
|
10.310
|
1000
|
|
5 x 185
|
67,90
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
13.040
|
500
|
|
5 x 240
|
76,00
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
16.650
|
500
|
|
Control Cables
|
|
7 x 1,5
|
15,80
|
13
|
16
|
12,1
|
14,478
|
0,17
|
375
|
1000
|
|
7 x 2,5
|
17,00
|
17
|
22
|
7,41
|
8,866
|
0,29
|
480
|
1000
|
|
10 x 1,5
|
18,80
|
11
|
14
|
12,1
|
14,478
|
0,17
|
540
|
1000
|
|
10 x 2,5
|
20,40
|
14
|
18
|
7,41
|
8,866
|
0,29
|
690
|
1000
|
|
12 x 1,5
|
19,30
|
10
|
13
|
12,1
|
14,478
|
0,17
|
580
|
1000
|
|
12 x 2,5
|
21,00
|
14
|
17
|
7,41
|
8,866
|
0,29
|
750
|
1000
|
|
14 x 1,5
|
20,10
|
10
|
12
|
12,1
|
14,478
|
0,17
|
640
|
1000
|
|
14 x 2,5
|
21,80
|
13
|
16
|
7,41
|
8,866
|
0,29
|
830
|
1000
|
|
19 x 1,5
|
21,80
|
9
|
11
|
12,1
|
14,478
|
0,17
|
770
|
1000
|
|
19 x 2,5
|
23,80
|
12
|
14
|
7,41
|
8,866
|
0,29
|
1.030
|
1000
|
|
21 x 1,5
|
22,80
|
8
|
10
|
12,1
|
14,478
|
0,17
|
850
|
1000
|
|
21 x 2,5
|
25,00
|
11
|
14
|
7,41
|
8,866
|
0,29
|
1.130
|
1000
|
|
24 x 1,5
|
24,80
|
8
|
9
|
12,1
|
14,478
|
0,17
|
1.000
|
1000
|
|
24 x 2,5
|
27,20
|
10
|
13
|
7,41
|
8,866
|
0,29
|
1.330
|
1000
|
|
30 x 1,5
|
26,10
|
7
|
9
|
12,1
|
14,478
|
0,17
|
1.140
|
1000
|
|
30 x 2,5
|
28,80
|
10
|
12
|
7,41
|
8,866
|
0,29
|
1.540
|
1000
|
|
40 x 1,5
|
29,00
|
7
|
8
|
12,1
|
14,478
|
0,17
|
1.450
|
1000
|
|
40 x 2,5
|
32,60
|
9
|
11
|
7,41
|
8,866
|
0,29
|
2.010
|
1000
|
