Application;
Switching stations, industrial plants, where there is risk of mechanical damage.

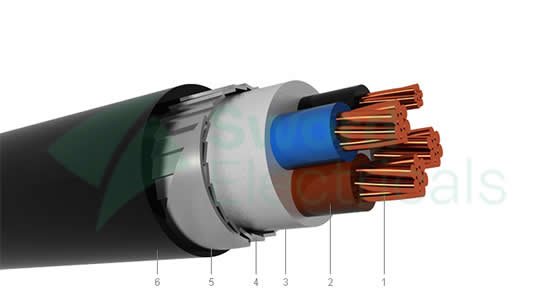

Construction;
1. Solid or stranded copper conductor
2. PVC insulation
3. PVC filler
4. Galvanized flat steel wires
5. Galvanized steel tape
6. PVC outer sheath
Construction;
|
Technical Features
|
|
Rated Cross Section
|
Overall Diameter of Cable (Approx)
|
Current Carrying Capacity
|
Conductor DC Resistance
|
Short Circuit Current
|
Net Weight (Approx)
|
Delivery Length (Approx)
|
|
mm2
|
mm
|
|
|
ohm/km (20°C)
|
ohm/km (70°C)
|
kA (1 sn)
|
kg/km
|
mt
|
|
Air
|
Ground
|
|
1 x 95
|
22,80
|
270
|
281
|
0,193
|
0,231
|
10,93
|
1.930
|
1000
|
|
1 x 120
|
24,20
|
310
|
315
|
0,153
|
0,183
|
13,80
|
2.230
|
1000
|
|
1 x 150
|
26,00
|
350
|
347
|
0,124
|
0,148
|
17,25
|
2.640
|
1000
|
|
1 x 185
|
28,40
|
399
|
385
|
0,0991
|
0,119
|
21,28
|
3.140
|
1000
|
|
1 x 240
|
31,30
|
462
|
432
|
0,0754
|
0,090
|
27,60
|
3.840
|
1000
|
|
1 x 300
|
34,20
|
519
|
473
|
0,0601
|
0,072
|
34,50
|
4.650
|
1000
|
|
1 x 400
|
37,90
|
583
|
521
|
0,0470
|
0,056
|
41,20
|
5.700
|
1000
|
|
1 x 500
|
41,40
|
657
|
574
|
0,0366
|
0,044
|
51,50
|
6.900
|
500
|
|
1 x 630
|
46,40
|
744
|
636
|
0,0283
|
0,034
|
64,89
|
8.650
|
500
|
|
2 x 25
|
24,40
|
114
|
136
|
0,727
|
0,870
|
2,88
|
1.480
|
1000
|
|
2 x 35
|
26,40
|
139
|
163
|
0,524
|
0,627
|
4,03
|
1.790
|
1000
|
|
2 x 50
|
29,20
|
169
|
193
|
0,387
|
0,463
|
5,75
|
2.210
|
1000
|
|
2 x 70
|
33,80
|
212
|
236
|
0,268
|
0,321
|
8,05
|
2.980
|
1000
|
|
2 x 95
|
38,40
|
260
|
281
|
0,193
|
0,231
|
10,93
|
3.850
|
1000
|
|
2 x 120
|
41,40
|
300
|
317
|
0,153
|
0,183
|
13,80
|
4.550
|
1000
|
|
2 x 150
|
45,80
|
340
|
352
|
0,124
|
0,148
|
17,25
|
5.530
|
1000
|
|
2 x 185
|
50,40
|
388
|
394
|
0,0991
|
0,119
|
21,28
|
6.790
|
1000
|
|
2 x 240
|
56,80
|
453
|
448
|
0,0754
|
0,090
|
27,60
|
8.610
|
1000
|
|
2 x 300
|
62,60
|
512
|
496
|
0,0601
|
0,072
|
34,50
|
10.580
|
1000
|
|
2 x 400
|
70,20
|
580
|
550
|
0,0470
|
0,056
|
41,20
|
13.170
|
500
|
|
3 x 16
|
21,90
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.250
|
1000
|
|
3 x 25
|
25,80
|
108
|
133
|
0,727
|
0,870
|
2,88
|
1.770
|
1000
|
|
3 x 35
|
28,20
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.180
|
1000
|
|
3 x 50
|
31,20
|
160
|
190
|
0,387
|
0,463
|
5,75
|
2.720
|
1000
|
|
3 x 70
|
36,10
|
202
|
234
|
0,268
|
0,321
|
8,05
|
3.710
|
1000
|
|
3 x 95
|
41,00
|
249
|
280
|
0,193
|
0,231
|
10,93
|
4.810
|
1000
|
|
3 x 120
|
44,60
|
289
|
319
|
0,153
|
0,183
|
13,80
|
5.790
|
1000
|
|
3 x 150
|
48,90
|
329
|
357
|
0,124
|
0,148
|
17,25
|
6.980
|
1000
|
|
3 x 185
|
54,30
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
8.670
|
1000
|
|
3 x 240
|
60,90
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
10.940
|
1000
|
|
3 x 300
|
67,10
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
13.500
|
500
|
|
3 x 400
|
75,70
|
577
|
579
|
0,0470
|
0,056
|
41,20
|
16.950
|
500
|
|
3 x 16 + 10
|
23,20
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.410
|
1000
|
|
3 x 25 + 16
|
27,10
|
108
|
133
|
0,727
|
0,870
|
2,88
|
1.960
|
1000
|
|
3 x 35 + 16
|
28,90
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.360
|
1000
|
|
3 x 50 + 25
|
32,80
|
160
|
190
|
0,387
|
0,463
|
5,75
|
3.050
|
1000
|
|
3 x 70 + 35
|
37,40
|
202
|
234
|
0,268
|
0,321
|
8,05
|
4.100
|
1000
|
|
3 x 95 + 50
|
42,60
|
249
|
280
|
0,193
|
0,231
|
10,93
|
5.330
|
1000
|
|
3 x 120 + 70
|
46,90
|
289
|
319
|
0,153
|
0,183
|
13,80
|
6.560
|
1000
|
|
3 x 150 + 70
|
50,30
|
329
|
357
|
0,124
|
0,148
|
17,25
|
7.660
|
1000
|
|
3 x 185 + 95
|
56,70
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
9.730
|
1000
|
|
3 x 240 + 120
|
62,80
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
12.080
|
1000
|
|
3 x 300 + 150
|
69,20
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
14.920
|
500
|
|
4 x 16
|
23,60
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.480
|
1000
|
|
4 x 25
|
28,20
|
108
|
133
|
0,727
|
0,870
|
2,88
|
2.130
|
1000
|
|
4 x 35
|
30,80
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.680
|
1000
|
|
4 x 50
|
34,50
|
160
|
190
|
0,387
|
0,463
|
5,75
|
3.410
|
1000
|
|
4 x 70
|
39,50
|
202
|
234
|
0,268
|
0,321
|
8,05
|
4.570
|
1000
|
|
4 x 95
|
45,70
|
249
|
280
|
0,193
|
0,231
|
10,93
|
6.080
|
1000
|
|
4 x 120
|
49,30
|
289
|
319
|
0,153
|
0,183
|
13,80
|
7.260
|
1000
|
|
4 x 150
|
54,20
|
329
|
357
|
0,124
|
0,148
|
17,25
|
8.820
|
1000
|
|
4 x 185
|
60,30
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
10.970
|
1000
|
|
4 x 240
|
67,30
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
13.790
|
1000
|
|
4 x 300
|
74,60
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
17.160
|
500
|
|
4 x 400
|
83,70
|
577
|
579
|
0,0470
|
0,056
|
41,20
|
21.460
|
500
|
|
4 x 16 + 10
|
24,70
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.620
|
1000
|
|
4 x 25 + 16
|
29,80
|
108
|
133
|
0,727
|
0,870
|
2,88
|
2.390
|
1000
|
|
4 x 35 + 16
|
31,90
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.900
|
1000
|
|
4 x 50 + 25
|
36,50
|
160
|
190
|
0,387
|
0,463
|
5,75
|
3.800
|
1000
|
|
4 x 70 + 35
|
41,30
|
202
|
234
|
0,268
|
0,321
|
8,05
|
5.040
|
1000
|
|
4 x 95 + 50
|
47,60
|
249
|
280
|
0,193
|
0,231
|
10,93
|
6.690
|
1000
|
|
4 x 120 + 70
|
52,20
|
289
|
319
|
0,153
|
0,183
|
13,80
|
8.220
|
1000
|
|
4 x 150 + 70
|
56,70
|
329
|
357
|
0,124
|
0,148
|
17,25
|
9.730
|
1000
|
|
4 x 185 + 95
|
63,10
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
12.140
|
1000
|
|
4 x 240 + 120
|
70,30
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
15.200
|
500
|
|
4 x 300 + 150
|
77,90
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
18.910
|
500
|
|
5 x 16
|
25,50
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.740
|
1000
|
|
5 x 25
|
30,70
|
108
|
133
|
0,727
|
0,870
|
2,88
|
2.550
|
1000
|
|
5 x 35
|
34,00
|
132
|
160
|
0,524
|
0,627
|
4,03
|
3.250
|
1000
|
|
5 x 50
|
37,70
|
160
|
190
|
0,387
|
0,463
|
5,75
|
4.100
|
1000
|
|
5 x 70
|
43,30
|
202
|
234
|
0,268
|
0,321
|
8,05
|
5.550
|
1000
|
|
5 x 95
|
50,00
|
249
|
280
|
0,193
|
0,231
|
10,93
|
7.350
|
1000
|
|
5 x 120
|
54,40
|
289
|
319
|
0,153
|
0,183
|
13,80
|
8.890
|
1000
|
|
5 x 150
|
59,80
|
329
|
357
|
0,124
|
0,148
|
17,25
|
10.790
|
1000
|
|
5 x 185
|
66,20
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
13.390
|
1000
|
|
5 x 240
|
74,50
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
16.940
|
500
|
