Application;
Switching stations, industrial plants, where there is risk of mechanical damage.

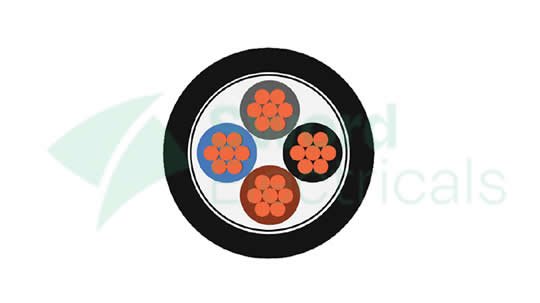

Construction;

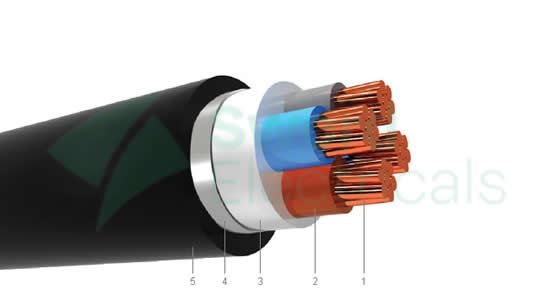

1. Solid or stranded copper conductor
2. PVC insulation
3. PVC Filler
4. Galvanized double steel tape
5. PVC outer sheath
Construction;
|
Technical Features
|
|
Rated Cross Section
|
Overall Diameter of Cable (Approx)
|
Current Carrying Capacity
|
Conductor DC Resistance
|
Short Circuit Current
|
Net Weight (Approx)
|
Delivery Length (Approx)
|
|
mm2
|
mm
|
|
|
ohm/km (20°C)
|
ohm/km (70°C)
|
kA (1 sn)
|
kg/km
|
mt
|
|
Air
|
Ground
|
|
3 x 10
|
19,20
|
60
|
79
|
1,83
|
2,190
|
1,15
|
790
|
1000
|
|
3 x 16
|
20,70
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.000
|
1000
|
|
3 x 25
|
24,60
|
108
|
133
|
0,727
|
0,870
|
2,88
|
1.470
|
1000
|
|
3 x 35
|
27,00
|
132
|
160
|
0,524
|
0,627
|
4,03
|
1.860
|
1000
|
|
3 x 50
|
30,00
|
160
|
190
|
0,387
|
0,463
|
5,75
|
2.360
|
1000
|
|
3 x 70
|
34,70
|
202
|
234
|
0,268
|
0,321
|
8,05
|
3.250
|
1000
|
|
3 x 95
|
41,00
|
249
|
280
|
0,193
|
0,231
|
10,93
|
4.810
|
1000
|
|
3 x 120
|
44,60
|
289
|
319
|
0,153
|
0,183
|
13,80
|
5.770
|
1000
|
|
3 x 150
|
48,90
|
329
|
357
|
0,124
|
0,148
|
17,25
|
6.960
|
1000
|
|
3 x 185
|
53,90
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
8.560
|
1000
|
|
3 x 240
|
60,70
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
10.830
|
1000
|
|
3 x 300
|
66,90
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
13.380
|
1000
|
|
3 x 400
|
75,30
|
577
|
579
|
0,0470
|
0,056
|
41,20
|
16.780
|
500
|
|
3 x 16 + 10
|
22,00
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.150
|
1000
|
|
3 x 25 + 16
|
25,70
|
108
|
133
|
0,727
|
0,870
|
2,88
|
1.650
|
1000
|
|
3 x 35 + 16
|
27,70
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.020
|
1000
|
|
3 x 50 + 25
|
31,40
|
160
|
190
|
0,387
|
0,463
|
5,75
|
2.660
|
1000
|
|
3 x 70 + 35
|
37,40
|
202
|
234
|
0,268
|
0,321
|
8,05
|
4.090
|
1000
|
|
3 x 95 + 50
|
42,60
|
249
|
280
|
0,193
|
0,231
|
10,93
|
5.330
|
1000
|
|
3 x 120 + 70
|
46,90
|
289
|
319
|
0,153
|
0,183
|
13,80
|
6.560
|
1000
|
|
3 x 150 + 70
|
50,30
|
329
|
357
|
0,124
|
0,148
|
17,25
|
7.630
|
1000
|
|
3 x 185 + 95
|
56,50
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
9.630
|
1000
|
|
3 x 240 + 120
|
62,60
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
11.980
|
1000
|
|
3 x 300 + 150
|
69,00
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
14.790
|
500
|
|
4 x 10
|
20,70
|
60
|
79
|
1,83
|
2,190
|
1,15
|
950
|
1000
|
|
4 x 16
|
22,40
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.220
|
1000
|
|
4 x 25
|
27,00
|
108
|
133
|
0,727
|
0,870
|
2,88
|
1.820
|
1000
|
|
4 x 35
|
29,40
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.300
|
1000
|
|
4 x 50
|
33,30
|
160
|
190
|
0,387
|
0,463
|
5,75
|
2.990
|
1000
|
|
4 x 70
|
39,50
|
202
|
234
|
0,268
|
0,321
|
8,05
|
4.570
|
1000
|
|
4 x 95
|
45,70
|
249
|
280
|
0,193
|
0,231
|
10,93
|
6.070
|
1000
|
|
4 x 120
|
49,30
|
289
|
319
|
0,153
|
0,183
|
13,80
|
7.240
|
1000
|
|
4 x 150
|
53,80
|
329
|
357
|
0,124
|
0,148
|
17,25
|
8.710
|
1000
|
|
4 x 185
|
59,90
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
10.850
|
1000
|
|
4 x 240
|
67,10
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
13.670
|
1000
|
|
4 x 300
|
74,40
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
17.030
|
500
|
|
4 x 400
|
84,90
|
577
|
579
|
0,0470
|
0,056
|
41,20
|
22.380
|
500
|
|
4 x 16 + 10
|
23,90
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.390
|
1000
|
|
4 x 25 + 16
|
28,40
|
108
|
133
|
0,727
|
0,870
|
2,88
|
2.040
|
1000
|
|
4 x 35 + 16
|
30,70
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.520
|
1000
|
|
4 x 50 + 25
|
36,50
|
160
|
190
|
0,387
|
0,463
|
5,75
|
3.790
|
1000
|
|
4 x 70 + 35
|
41,30
|
202
|
234
|
0,268
|
0,321
|
8,05
|
5.040
|
1000
|
|
4 x 95 + 50
|
47,60
|
249
|
280
|
0,193
|
0,231
|
10,93
|
6.670
|
1000
|
|
4 x 120 + 70
|
52,00
|
289
|
319
|
0,153
|
0,183
|
13,80
|
8.130
|
1000
|
|
4 x 150 + 70
|
56,50
|
329
|
357
|
0,124
|
0,148
|
17,25
|
9.630
|
1000
|
|
4 x 185 + 95
|
62,90
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
12.040
|
1000
|
|
4 x 240 + 120
|
70,10
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
15.080
|
500
|
|
4 x 300 + 150
|
77,70
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
18.760
|
500
|
|
5 x 10
|
22,40
|
60
|
79
|
1,83
|
2,190
|
1,15
|
1.120
|
1000
|
|
5 x 16
|
24,30
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.460
|
1000
|
|
5 x 25
|
29,30
|
108
|
133
|
0,727
|
0,870
|
2,88
|
2.180
|
1000
|
|
5 x 35
|
32,80
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.850
|
1000
|
|
5 x 50
|
37,70
|
160
|
190
|
0,387
|
0,463
|
5,75
|
4.090
|
1000
|
|
5 x 70
|
43,30
|
202
|
234
|
0,268
|
0,321
|
8,05
|
5.530
|
1000
|
|
5 x 95
|
50,00
|
249
|
280
|
0,193
|
0,231
|
10,93
|
7.350
|
1000
|
|
5 x 120
|
54,20
|
289
|
319
|
0,153
|
0,183
|
13,80
|
8.810
|
1000
|
|
5 x 150
|
59,60
|
329
|
357
|
0,124
|
0,148
|
17,25
|
10.700
|
1000
|
|
5 x 185
|
66,00
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
13.260
|
500
|
|
5 x 240
|
74,30
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
16.820
|
500
|
