Application;

VK-PV are used in solar power and solar energy production applications, solar cells and solar panel systems. VK-PV is suitable for usage in PV Systems manufactured in compliance with HD 60364-7-712. Recommended service life is 25 years.

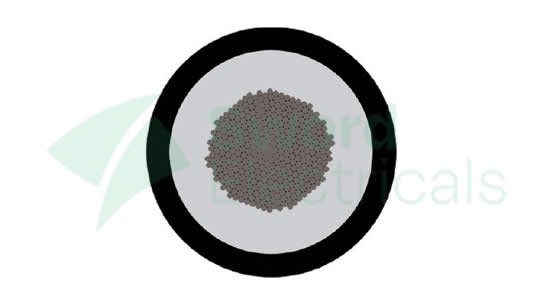

Construction;

1. Electrolitic Tinned flexible Conductor
2. LSZH-FR Cross-Linked Compound
3. LSZH-FR Cross-Linked Compound

Technical Data;

Desing Standard: EN 50618
Permissible Operating Tempature: 90°C
Operating Voltage (Rated Voltage): 1.0/1KV Ac
Operating Voltage(Max. Voltage DC): 1.5/1.5Kv
Max. Short Circuit Temapature: 250°C
Colours: Black/Red

Construction;

Technical Data

Cross Section

Max.Outer Diameter

Current Carrying Capacity

Max. DC Resistance

Nom. Weigh

Delivery Length

mm²

mm

A

Ohm/km (20°C)

kg/km

mt

1,50

5,40

30

13,70

38,20

1000

2,50

5,90

41

8,21

50,80

1000

4,00

6,60

55

5,09

67,40

1000

6,00

7,40

70

3,39

90,20

1000

10,00

8,80

98

1,95

135,20

1000

16,00

10,10

132

1,24

205,10

1000

25,00

12,50

176

0,795

309,00

1000

35,00

14,00

218

0,565

416,40

1000

50,00

16,30

276

0,393

571,40

1000

70,00

18,70

347

0,277

810,60

1000

95,00

20,80

416

0,21

1001,70

1000

120,00

22,80

488

0,164

1274,90

1000

150,00

25,50

566

0,132

1674,10

1000

185,00

28,50

644

0,108

1987,10

1000

240,00

32,10

775

0,0817

2699,30

1000
