Application;
Switching panels, urban networks, in ducts where there is a risk of mechanical damage, in water for stationary conditions.

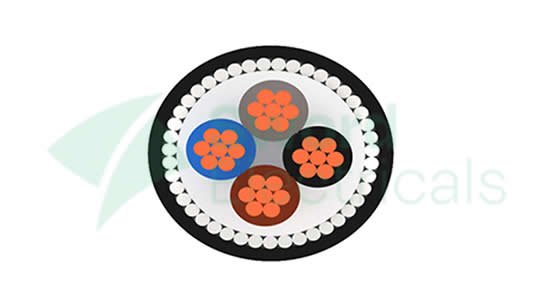

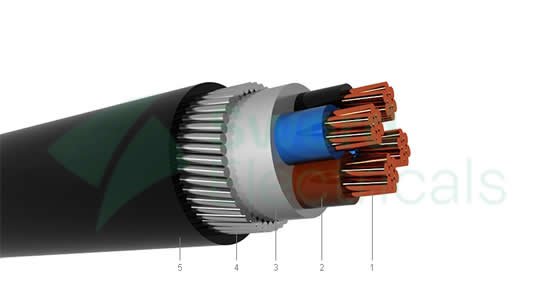

Construction;
1. Solid or stranded copper conductor
2. PVC insulation
3. PVC filler
4. Galvanized round steel wires
5. Polyester tape
6. PVC outer sheath
Construction;
|
Technical Data
|
|
Rated Cross Section
|
Overall Diameter of Cable (Approx)
|
Current Carrying Capacity
|
Conductor DC Resistance
|
Short Circuit Current
|
Net Weight (Approx)
|
Delivery Length (Approx)
|
|
mm2
|
mm
|
|
|
ohm/km (20°C)
|
ohm/km (70°C)
|
kA (1 sn)
|
kg/km
|
mt
|
|
Air
|
Ground
|
|
1 x 10
|
13,50
|
67
|
84
|
1,83
|
2,190
|
1,15
|
385
|
1000
|
|
1 x 16
|
14,20
|
89
|
108
|
1,15
|
1,376
|
1,84
|
460
|
1000
|
|
1 x 25
|
16,80
|
119
|
139
|
0,727
|
0,870
|
2,88
|
710
|
1000
|
|
1 x 35
|
17,80
|
146
|
166
|
0,524
|
0,627
|
4,03
|
840
|
1000
|
|
1 x 50
|
19,10
|
177
|
196
|
0,387
|
0,463
|
5,75
|
1.020
|
1000
|
|
1 x 70
|
21,70
|
221
|
238
|
0,268
|
0,321
|
8,05
|
1.390
|
1000
|
|
1 x 95
|
23,90
|
270
|
281
|
0,193
|
0,231
|
10,93
|
1.740
|
1000
|
|
1 x 120
|
25,30
|
310
|
315
|
0,153
|
0,183
|
13,80
|
2.030
|
1000
|
|
1 x 150
|
27,30
|
350
|
347
|
0,124
|
0,148
|
17,25
|
2.410
|
1000
|
|
1 x 185
|
29,50
|
399
|
385
|
0,0991
|
0,119
|
21,28
|
2.890
|
1000
|
|
1 x 240
|
33,40
|
462
|
432
|
0,0754
|
0,090
|
27,60
|
3.770
|
1000
|
|
1 x 300
|
36,30
|
519
|
473
|
0,0601
|
0,072
|
34,50
|
4.560
|
1000
|
|
1 x 400
|
40,00
|
583
|
521
|
0,0470
|
0,056
|
41,20
|
5.590
|
1000
|
|
1 x 500
|
43,50
|
657
|
574
|
0,0366
|
0,044
|
51,50
|
6.800
|
500
|
|
1 x 630
|
49,40
|
744
|
636
|
0,0283
|
0,034
|
64,89
|
8.880
|
500
|
|
2 x 1,5
|
13,20
|
21
|
29
|
12,1
|
14,478
|
0,17
|
335
|
1000
|
|
2 x 2,5
|
14,00
|
28
|
38
|
7,41
|
8,866
|
0,29
|
385
|
1000
|
|
2 x 4
|
16,40
|
37
|
49
|
4,61
|
5,516
|
0,46
|
580
|
1000
|
|
2 x 6
|
17,40
|
47
|
61
|
3,08
|
3,685
|
0,69
|
670
|
1000
|
|
2 x 10
|
19,80
|
64
|
82
|
1,83
|
2,190
|
1,15
|
880
|
1000
|
|
2 x 16
|
21,90
|
85
|
105
|
1,15
|
1,376
|
1,84
|
1.180
|
1000
|
|
2 x 25
|
25,50
|
114
|
136
|
0,727
|
0,870
|
2,88
|
1.630
|
1000
|
|
2 x 35
|
27,70
|
139
|
163
|
0,524
|
0,627
|
4,03
|
1.960
|
1000
|
|
2 x 50
|
30,50
|
169
|
193
|
0,387
|
0,463
|
5,75
|
2.410
|
1000
|
|
2 x 70
|
35,70
|
212
|
236
|
0,268
|
0,321
|
8,05
|
3.430
|
1000
|
|
2 x 95
|
40,50
|
260
|
281
|
0,193
|
0,231
|
10,93
|
4.380
|
1000
|
|
2 x 120
|
43,50
|
300
|
317
|
0,153
|
0,183
|
13,80
|
5.140
|
1000
|
|
2 x 150
|
48,80
|
340
|
352
|
0,124
|
0,148
|
17,25
|
6.550
|
1000
|
|
2 x 185
|
53,40
|
388
|
394
|
0,0991
|
0,119
|
21,28
|
7.920
|
1000
|
|
2 x 240
|
59,60
|
453
|
448
|
0,0754
|
0,090
|
27,60
|
9.810
|
1000
|
|
2 x 300
|
65,40
|
512
|
496
|
0,0601
|
0,072
|
34,50
|
11.880
|
500
|
|
2 x 400
|
74,20
|
580
|
550
|
0,0470
|
0,056
|
41,20
|
15.430
|
500
|
|
3 x 1,5
|
13,70
|
20
|
27
|
12,1
|
14,478
|
0,17
|
365
|
1000
|
|
3 x 2,5
|
14,60
|
26
|
36
|
7,41
|
8,866
|
0,29
|
430
|
1000
|
|
3 x 4
|
17,10
|
34
|
47
|
4,61
|
5,516
|
0,46
|
650
|
1000
|
|
3 x 6
|
18,20
|
44
|
59
|
3,08
|
3,685
|
0,69
|
760
|
1000
|
|
3 x 10
|
20,80
|
60
|
79
|
1,83
|
2,190
|
1,15
|
1.020
|
1000
|
|
3 x 16
|
23,00
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.380
|
1000
|
|
3 x 25
|
27,10
|
108
|
133
|
0,727
|
0,870
|
2,88
|
1.930
|
1000
|
|
3 x 35
|
29,30
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.370
|
1000
|
|
3 x 50
|
33,30
|
160
|
190
|
0,387
|
0,463
|
5,75
|
3.150
|
1000
|
|
3 x 70
|
38,00
|
202
|
234
|
0,268
|
0,321
|
8,05
|
4.170
|
1000
|
|
3 x 95
|
43,10
|
249
|
280
|
0,193
|
0,231
|
10,93
|
5.370
|
1000
|
|
3 x 120
|
47,60
|
289
|
319
|
0,153
|
0,183
|
13,80
|
6.770
|
1000
|
|
3 x 150
|
51,90
|
329
|
357
|
0,124
|
0,148
|
17,25
|
8.070
|
1000
|
|
3 x 185
|
56,90
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
9.800
|
1000
|
|
3 x 240
|
63,70
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
12.210
|
1000
|
|
3 x 300
|
69,90
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
14.940
|
500
|
|
3 x 400
|
79,70
|
577
|
579
|
0,0470
|
0,056
|
41,20
|
19.390
|
500
|
|
3 x 10 + 6
|
22,60
|
60
|
79
|
1,83
|
2,190
|
1,15
|
1.260
|
1000
|
|
3 x 16 + 10
|
24,30
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.550
|
1000
|
|
3 x 25 + 16
|
28,20
|
108
|
133
|
0,727
|
0,870
|
2,88
|
2.130
|
1000
|
|
3 x 35 + 16
|
30,20
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.560
|
1000
|
|
3 x 50 + 25
|
34,70
|
160
|
190
|
0,387
|
0,463
|
5,75
|
3.480
|
1000
|
|
3 x 70 + 35
|
39,50
|
202
|
234
|
0,268
|
0,321
|
8,05
|
4.600
|
1000
|
|
3 x 95 + 50
|
45,60
|
249
|
280
|
0,193
|
0,231
|
10,93
|
6.260
|
1000
|
|
3 x 120 + 70
|
49,90
|
289
|
319
|
0,153
|
0,183
|
13,80
|
7.630
|
1000
|
|
3 x 150 + 70
|
53,30
|
329
|
357
|
0,124
|
0,148
|
17,25
|
8.750
|
1000
|
|
3 x 185 + 95
|
59,50
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
10.930
|
1000
|
|
3 x 240 + 120
|
65,60
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
13.430
|
1000
|
|
3 x 300 + 150
|
73,40
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
17.210
|
500
|
|
4 x 1,5
|
14,50
|
20
|
27
|
12,1
|
14,478
|
0,17
|
415
|
1000
|
|
4 x 2,5
|
16,30
|
26
|
36
|
7,41
|
8,866
|
0,29
|
590
|
1000
|
|
4 x 4
|
18,20
|
34
|
47
|
4,61
|
5,516
|
0,46
|
740
|
1000
|
|
4 x 6
|
19,40
|
44
|
59
|
3,08
|
3,685
|
0,69
|
880
|
1000
|
|
4 x 10
|
23,00
|
60
|
79
|
1,83
|
2,190
|
1,15
|
1.320
|
1000
|
|
4 x 16
|
24,70
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.620
|
1000
|
|
4 x 25
|
29,30
|
108
|
133
|
0,727
|
0,870
|
2,88
|
2.320
|
1000
|
|
4 x 35
|
31,90
|
132
|
160
|
0,524
|
0,627
|
4,03
|
2.870
|
1000
|
|
4 x 50
|
36,60
|
160
|
190
|
0,387
|
0,463
|
5,75
|
3.870
|
1000
|
|
4 x 70
|
41,40
|
202
|
234
|
0,268
|
0,321
|
8,05
|
5.100
|
1000
|
|
4 x 95
|
48,70
|
249
|
280
|
0,193
|
0,231
|
10,93
|
7.090
|
1000
|
|
4 x 120
|
52,30
|
289
|
319
|
0,153
|
0,183
|
13,80
|
8.340
|
1000
|
|
4 x 150
|
56,80
|
329
|
357
|
0,124
|
0,148
|
17,25
|
9.950
|
1000
|
|
4 x 185
|
62,90
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
12.240
|
1000
|
|
4 x 240
|
70,10
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
15.230
|
500
|
|
4 x 300
|
78,80
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
19.660
|
500
|
|
4 x 400
|
87,90
|
577
|
579
|
0,0470
|
0,056
|
41,20
|
24.240
|
500
|
|
4 x 10 + 6
|
24,30
|
60
|
79
|
1,83
|
2,190
|
1,15
|
1.460
|
1000
|
|
4 x 16 + 10
|
26,20
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.830
|
1000
|
|
4 x 25 + 16
|
30,90
|
108
|
133
|
0,727
|
0,870
|
2,88
|
2.580
|
1000
|
|
4 x 35 + 16
|
34,00
|
132
|
160
|
0,524
|
0,627
|
4,03
|
3.320
|
1000
|
|
4 x 50 + 25
|
38,40
|
160
|
190
|
0,387
|
0,463
|
5,75
|
4.280
|
1000
|
|
4 x 70 + 35
|
43,40
|
202
|
234
|
0,268
|
0,321
|
8,05
|
5.620
|
1000
|
|
4 x 95 + 50
|
50,60
|
249
|
280
|
0,193
|
0,231
|
10,93
|
7.730
|
1000
|
|
4 x 120 + 70
|
55,00
|
289
|
319
|
0,153
|
0,183
|
13,80
|
9.290
|
1000
|
|
4 x 150 + 70
|
59,50
|
329
|
357
|
0,124
|
0,148
|
17,25
|
10.930
|
1000
|
|
4 x 185 + 95
|
65,90
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
13.480
|
1000
|
|
4 x 240 + 120
|
74,30
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
17.520
|
500
|
|
4 x 300 + 150
|
82,10
|
504
|
518
|
0,0601
|
0,072
|
34,50
|
21.510
|
500
|
|
5 x 1,5
|
16,10
|
20
|
27
|
12,1
|
14,478
|
0,17
|
560
|
1000
|
|
5 x 2,5
|
17,20
|
26
|
36
|
7,41
|
8,866
|
0,29
|
660
|
1000
|
|
5 x 4
|
19,40
|
34
|
47
|
4,61
|
5,516
|
0,46
|
850
|
1000
|
|
5 x 6
|
20,70
|
44
|
59
|
3,08
|
3,685
|
0,69
|
1.010
|
1000
|
|
5 x 10
|
24,70
|
60
|
79
|
1,83
|
2,190
|
1,15
|
1.530
|
1000
|
|
5 x 16
|
26,80
|
80
|
102
|
1,15
|
1,376
|
1,84
|
1.920
|
1000
|
|
5 x 25
|
31,80
|
108
|
133
|
0,727
|
0,870
|
2,88
|
2.740
|
1000
|
|
5 x 35
|
36,10
|
132
|
160
|
0,524
|
0,627
|
4,03
|
3.720
|
1000
|
|
5 x 50
|
39,80
|
160
|
190
|
0,387
|
0,463
|
5,75
|
4.600
|
1000
|
|
5 x 70
|
46,30
|
202
|
234
|
0,268
|
0,321
|
8,05
|
6.480
|
1000
|
|
5 x 95
|
53,00
|
249
|
280
|
0,193
|
0,231
|
10,93
|
8.470
|
1000
|
|
5 x 120
|
57,00
|
289
|
319
|
0,153
|
0,183
|
13,80
|
10.020
|
1000
|
|
5 x 150
|
62,60
|
329
|
357
|
0,124
|
0,148
|
17,25
|
12.050
|
1000
|
|
5 x 185
|
69,00
|
377
|
402
|
0,0991
|
0,119
|
21,28
|
14.800
|
500
|
|
5 x 240
|
78,70
|
443
|
463
|
0,0754
|
0,090
|
27,60
|
19.390
|
500
|
|
7 x 1,5
|
17,00
|
13
|
16
|
12,1
|
14,478
|
0,17
|
630
|
1000
|
|
7 x 2,5
|
18,20
|
17
|
22
|
7,41
|
8,866
|
0,29
|
750
|
1000
|
|
10 x 1,5
|
20,00
|
11
|
14
|
12,1
|
14,478
|
0,17
|
860
|
1000
|
|
10 x 2,5
|
22,30
|
14
|
18
|
7,41
|
8,866
|
0,29
|
1.150
|
1000
|
|
12 x 1,5
|
20,50
|
10
|
13
|
12,1
|
14,478
|
0,17
|
920
|
1000
|
|
12 x 2,5
|
22,90
|
14
|
17
|
7,41
|
8,866
|
0,29
|
1.230
|
1000
|
|
14 x 1,5
|
22,00
|
10
|
12
|
12,1
|
14,478
|
0,17
|
1.100
|
1000
|
|
14 x 2,5
|
23,70
|
13
|
16
|
7,41
|
8,866
|
0,29
|
1.330
|
1000
|
|
19 x 1,5
|
23,70
|
9
|
11
|
12,1
|
14,478
|
0,17
|
1.290
|
1000
|
|
19 x 2,5
|
25,70
|
12
|
14
|
7,41
|
8,866
|
0,29
|
1.590
|
1000
|
|
21 x 1,5
|
24,70
|
8
|
10
|
12,1
|
14,478
|
0,17
|
1.390
|
1000
|
|
21 x 2,5
|
27,10
|
11
|
14
|
7,41
|
8,866
|
0,29
|
1.740
|
1000
|
|
24 x 1,5
|
26,90
|
8
|
9
|
12,1
|
14,478
|
0,17
|
1.620
|
1000
|
|
24 x 2,5
|
29,30
|
10
|
13
|
7,41
|
8,866
|
0,29
|
2.020
|
1000
|
|
30 x 1,5
|
28,20
|
7
|
9
|
12,1
|
14,478
|
0,17
|
1.790
|
1000
|
|
30 x 2,5
|
30,90
|
10
|
12
|
7,41
|
8,866
|
0,29
|
2.260
|
1000
|
|
40 x 1,5
|
31,10
|
7
|
8
|
12,1
|
14,478
|
0,17
|
2.190
|
1000
|
|
40 x 2,5
|
35,50
|
9
|
11
|
7,41
|
8,866
|
0,29
|
3.050
|
1000
|
