Application;

At power distribution stations, house hold premises at industrial plants in cable ducts and pipes. Where there is no risk of mechanical damage.

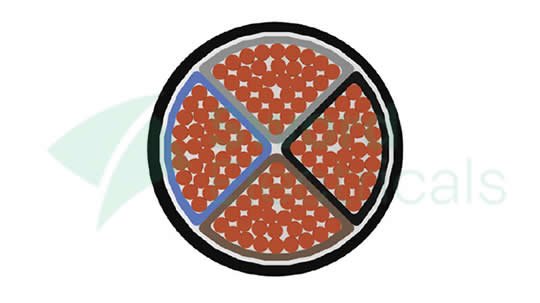

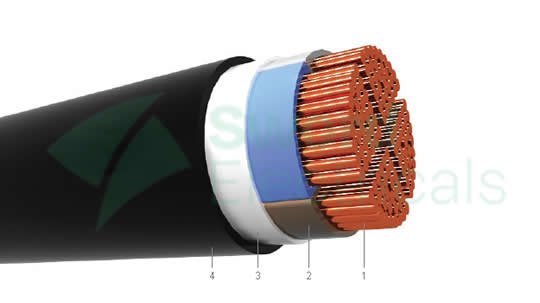

1. Solid or stranded copper conductor
2. PVC insulation
3. Polyester tape
4. PVC outer sheath

Construction;

Technical Data
Rated Cross Section	Overall Diameter of Cable (Approx)	Current Carrying Capacity		Conductor DC Resistance		Short Circuit Current	Net Weight (Approx)	Delivery Length (Approx)
mm²	mm			ohm/km (20°C)	ohm/km (70°C)	kA (1 sn)	kg/km	mt
mm²	mm	Air	Ground	ohm/km (20°C)	ohm/km (70°C)	kA (1 sn)	kg/km	mt
3 x 25	20,30	106	133	0,727	0,870	2,88	910	1000
3 x 35	23,50	129	159	0,524	0,627	4,03	1.230	1000
3 x 50	26,90	157	188	0,387	0,463	5,75	1.640	1000
3 x 70	29,10	199	232	0,268	0,321	8,05	2.240	1000
3 x 95	34,90	246	280	0,193	0,231	10,93	3.110	1000
3 x 120	37,90	285	318	0,153	0,183	13,80	3.840	1000
3 x 150	40,50	326	359	0,124	0,148	17,25	4.700	1000
3 x 185	44,70	374	406	0,0991	0,119	21,28	5.830	1000
3 x 240	50,90	445	473	0,0754	0,090	27,60	7.580	1000
3 x 300	55,10	511	535	0,0601	0,072	34,50	9.420	1000
3 x 400	62,30	597	613	0,0470	0,056	41,20	12.180	500
4 x 25	21,30	106	133	0,727	0,870	2,88	1.180	1000
4 x 35	24,70	129	159	0,524	0,627	4,03	1.580	1000
4 x 50	27,70	157	188	0,387	0,463	5,75	2.110	1000
4 x 70	30,70	199	232	0,268	0,321	8,05	2.890	1000
4 x 95	36,30	246	280	0,193	0,231	10,93	4.010	1000
4 x 120	39,30	285	318	0,153	0,183	13,80	4.970	1000
4 x 150	43,10	326	359	0,124	0,148	17,25	6.130	1000
4 x 185	47,50	374	406	0,0991	0,119	21,28	7.640	1000
4 x 240	53,30	445	473	0,0754	0,090	27,60	9.960	1000
4 x 300	58,30	511	535	0,0601	0,072	34,50	12.380	500
4 x 400	62,30	597	613	0,0470	0,056	41,20	15.950	500
