Application;
At power distribution stations, house hold premises, at industrial plants in cable ducts and pipes.Where there is no risk of mechanical damage.

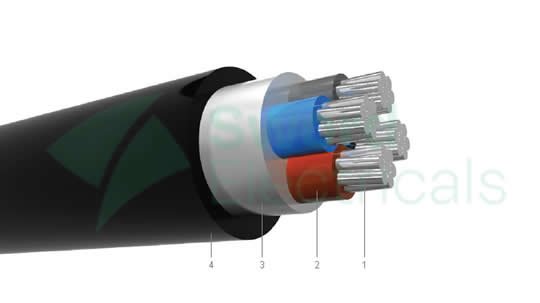

Construction;
1. Solid or stranded aluminium conductor
2. XLPE insulation
3. PVC filler
4. PVC outer sheath
Construction;
|
Technical Features
|
|
Rated Cross Section
|
Overall Diameter
of Cable (Approx)
|
Current Carrying
Capacity
|
Conductor DC Resistance
|
Short Circuit
Current
|
Net Weight (Approx)
|
Delivery Length (Approx)
|
|
mm2
|
mm
|
|
|
ohm/km (20°C)
|
ohm/km (90°C)
|
kA (1 sn)
|
kg/km
|
mt
|
|
Air
|
Ground
|
|
1 x 25
|
10,50
|
106
|
114
|
1,2
|
1,539
|
2,35
|
150
|
1000
|
|
1 x 35
|
11,50
|
130
|
136
|
0,868
|
1,113
|
3,29
|
185
|
1000
|
|
1 x 50
|
12,90
|
161
|
162
|
0,641
|
0,822
|
4,70
|
235
|
1000
|
|
1 x 70
|
14,90
|
204
|
199
|
0,443
|
0,568
|
6,58
|
320
|
1000
|
|
1 x 95
|
16,60
|
252
|
238
|
0,32
|
0,410
|
8,93
|
410
|
1000
|
|
1 x 120
|
18,40
|
295
|
272
|
0,253
|
0,324
|
11,28
|
510
|
1000
|
|
1 x 150
|
20,30
|
339
|
305
|
0,206
|
0,264
|
14,10
|
600
|
1000
|
|
1 x 185
|
22,50
|
395
|
347
|
0,164
|
0,210
|
17,39
|
750
|
1000
|
|
1 x 240
|
25,20
|
472
|
404
|
0,125
|
0,160
|
22,56
|
990
|
1000
|
|
1 x 300
|
27,60
|
547
|
457
|
0,1
|
0,128
|
28,20
|
1.210
|
1000
|
|
1 x 400
|
31,00
|
643
|
525
|
0,0778
|
0,100
|
37,60
|
1.480
|
1000
|
|
1 x 500
|
34,60
|
754
|
601
|
0,0605
|
0,078
|
47,00
|
1.880
|
500
|
|
1 x 630
|
39,60
|
882
|
687
|
0,0469
|
0,060
|
59,22
|
2.460
|
500
|
|
2 x 25
|
19,80
|
104
|
113
|
1,2
|
1,539
|
2,35
|
550
|
1000
|
|
2 x 35
|
21,80
|
128
|
136
|
0,868
|
1,113
|
3,29
|
670
|
1000
|
|
2 x 50
|
24,60
|
155
|
160
|
0,641
|
0,822
|
4,70
|
860
|
1000
|
|
2 x 70
|
28,40
|
198
|
198
|
0,443
|
0,568
|
6,58
|
1.160
|
1000
|
|
2 x 95
|
33,00
|
243
|
236
|
0,32
|
0,410
|
8,93
|
1.590
|
1000
|
|
2 x 120
|
36,40
|
284
|
270
|
0,253
|
0,324
|
11,28
|
1.940
|
1000
|
|
2 x 150
|
40,40
|
325
|
303
|
0,206
|
0,264
|
14,10
|
2.370
|
1000
|
|
2 x 185
|
45,60
|
378
|
345
|
0,164
|
0,210
|
17,39
|
3.030
|
1000
|
|
2 x 240
|
50,80
|
450
|
401
|
0,125
|
0,160
|
22,56
|
3.860
|
1000
|
|
2 x 300
|
56,40
|
527
|
457
|
0,1
|
0,128
|
28,20
|
4.790
|
1000
|
|
2 x 400
|
63,40
|
622
|
527
|
0,0778
|
0,100
|
37,60
|
5.960
|
500
|
|
3 x 25
|
21,10
|
102
|
112
|
1,2
|
1,539
|
2,35
|
630
|
1000
|
|
3 x 35
|
23,20
|
126
|
135
|
0,868
|
1,113
|
3,29
|
770
|
1000
|
|
3 x 50
|
26,30
|
149
|
158
|
0,641
|
0,822
|
4,70
|
990
|
1000
|
|
3 x 70
|
31,40
|
191
|
196
|
0,443
|
0,568
|
6,58
|
1.430
|
1000
|
|
3 x 95
|
35,20
|
234
|
234
|
0,32
|
0,410
|
8,93
|
1.830
|
1000
|
|
3 x 120
|
39,10
|
273
|
268
|
0,253
|
0,324
|
11,28
|
2.270
|
1000
|
|
3 x 150
|
44,20
|
311
|
300
|
0,206
|
0,264
|
14,10
|
2.850
|
1000
|
|
3 x 185
|
48,90
|
360
|
342
|
0,164
|
0,210
|
17,39
|
3.520
|
1000
|
|
3 x 240
|
55,50
|
427
|
398
|
0,125
|
0,160
|
22,56
|
4.670
|
1000
|
|
3 x 300
|
60,70
|
507
|
457
|
0,1
|
0,128
|
28,20
|
5.640
|
500
|
|
3 x 400
|
68,00
|
600
|
529
|
0,0778
|
0,100
|
37,60
|
6.950
|
500
|
|
3 x 25 + 16
|
22,00
|
102
|
112
|
1,2
|
1,539
|
2,35
|
690
|
1000
|
|
3 x 35 + 16
|
24,10
|
126
|
135
|
0,868
|
1,113
|
3,29
|
830
|
1000
|
|
3 x 50 + 25
|
27,60
|
149
|
158
|
0,641
|
0,822
|
4,70
|
1.090
|
1000
|
|
3 x 70 + 35
|
32,50
|
191
|
196
|
0,443
|
0,568
|
6,58
|
1.540
|
1000
|
|
3 x 95 + 50
|
36,80
|
234
|
234
|
0,32
|
0,410
|
8,93
|
2.000
|
1000
|
|
3 x 120 + 70
|
41,00
|
273
|
268
|
0,253
|
0,324
|
11,28
|
2.500
|
1000
|
|
3 x 150 + 70
|
45,70
|
311
|
300
|
0,206
|
0,264
|
14,10
|
3.060
|
1000
|
|
3 x 185 + 95
|
50,50
|
360
|
342
|
0,164
|
0,210
|
17,39
|
3.780
|
1000
|
|
3 x 240 + 120
|
57,40
|
427
|
398
|
0,125
|
0,160
|
22,56
|
5.020
|
1000
|
|
3 x 300 + 150
|
62,80
|
507
|
457
|
0,1
|
0,128
|
28,20
|
6.050
|
500
|
|
4 x 25
|
23,10
|
102
|
112
|
1,2
|
1,539
|
2,35
|
760
|
1000
|
|
4 x 35
|
25,50
|
126
|
135
|
0,868
|
1,113
|
3,29
|
930
|
1000
|
|
4 x 50
|
29,10
|
149
|
158
|
0,641
|
0,822
|
4,70
|
1.210
|
1000
|
|
4 x 70
|
34,60
|
191
|
196
|
0,443
|
0,568
|
6,58
|
1.740
|
1000
|
|
4 x 95
|
39,20
|
234
|
234
|
0,32
|
0,410
|
8,93
|
2.280
|
1000
|
|
4 x 120
|
44,00
|
273
|
268
|
0,253
|
0,324
|
11,28
|
2.890
|
1000
|
|
4 x 150
|
49,00
|
311
|
300
|
0,206
|
0,264
|
14,10
|
3.520
|
1000
|
|
4 x 185
|
55,10
|
360
|
342
|
0,164
|
0,210
|
17,39
|
4.490
|
1000
|
|
4 x 240
|
61,50
|
427
|
398
|
0,125
|
0,160
|
22,56
|
5.780
|
1000
|
|
4 x 300
|
67,20
|
507
|
457
|
0,1
|
0,128
|
28,20
|
6.970
|
500
|
|
4 x 400
|
76,00
|
600
|
529
|
0,0778
|
0,100
|
37,60
|
8.720
|
500
|
|
4 x 25 + 16
|
24,30
|
102
|
112
|
1,2
|
1,539
|
2,35
|
840
|
1000
|
|
4 x 35 + 16
|
26,80
|
126
|
135
|
0,868
|
1,113
|
3,29
|
1.030
|
1000
|
|
4 x 50 + 25
|
31,60
|
149
|
158
|
0,641
|
0,822
|
4,70
|
1.430
|
1000
|
|
4 x 70 + 35
|
36,50
|
191
|
196
|
0,443
|
0,568
|
6,58
|
1.940
|
1000
|
|
4 x 95 + 50
|
41,10
|
234
|
234
|
0,32
|
0,410
|
8,93
|
2.510
|
1000
|
|
4 x 120 + 70
|
46,70
|
273
|
268
|
0,253
|
0,324
|
11,28
|
3.250
|
1000
|
|
4 x 150 + 70
|
51,20
|
311
|
300
|
0,206
|
0,264
|
14,10
|
3.850
|
1000
|
|
4 x 185 + 95
|
57,60
|
360
|
342
|
0,164
|
0,210
|
17,39
|
4.920
|
500
|
|
4 x 240 + 120
|
64,30
|
427
|
398
|
0,125
|
0,160
|
22,56
|
6.320
|
500
|
|
4 x 300 + 150
|
70,90
|
507
|
457
|
0,1
|
0,128
|
28,20
|
7.730
|
500
|
|
5 x 25
|
25,20
|
102
|
112
|
1,2
|
1,539
|
2,35
|
910
|
1000
|
|
5 x 35
|
28,10
|
126
|
135
|
0,868
|
1,113
|
3,29
|
1.130
|
1000
|
|
5 x 50
|
33,10
|
149
|
158
|
0,641
|
0,822
|
4,70
|
1.570
|
1000
|
|
5 x 70
|
38,20
|
191
|
196
|
0,443
|
0,568
|
6,58
|
2.130
|
1000
|
|
5 x 95
|
44,00
|
234
|
234
|
0,32
|
0,410
|
8,93
|
2.880
|
1000
|
|
5 x 120
|
48,70
|
273
|
268
|
0,253
|
0,324
|
11,28
|
3.550
|
1000
|
|
5 x 150
|
55,00
|
311
|
300
|
0,206
|
0,264
|
14,10
|
4.440
|
1000
|
|
5 x 185
|
60,80
|
360
|
342
|
0,164
|
0,210
|
17,39
|
5.480
|
1000
|
|
5 x 240
|
68,00
|
427
|
398
|
0,125
|
0,160
|
22,56
|
7.080
|
500
|
