Application;

These cables used in energy networks with sudden load changes laid in residential or industrial areas, underground or in docts. If the cables gets water inside due to the mechanical damages swellable tapes prevent the water.

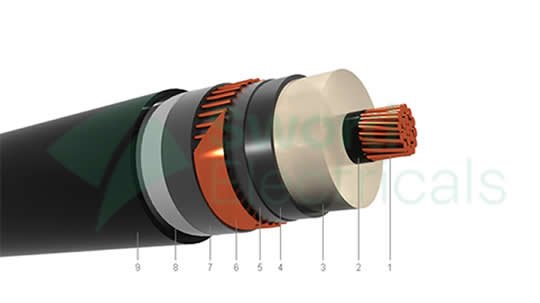

Construction;

1. Stranded copper conductor
2. Inner semi condutive layer
3. XPLE insulation
4. Outer semi conductive layer
5. Semi conductive swellable tape
6. Copper wire screen
7. Swellable tape
8. Aluminium tape
9. PE outer sheath

Construction;

Technical Data
Rated Cross Section	Overall Diameter Of Cable	Current Carrying Capacity		Operating Capacity	Conductor DC Resistance at (20 oC)	Net Weight	Delivery Lenght
mm2	mm	Air 30 oC	Ground 20 oC	µF / km	Ohm / Km	Kg / Km	Mt
1x240/25	61,2	692	530	0,18	0,0754	4710	250
1x300/25	63,10	795	599	0,19	0,0601	5415	250
1x400/25	66,20	925	683	0,21	0,0470	6300	250
