Application;
For indoor, outdoor and underground installation in ducts and in the open where better mechanical protection is required, or for higher tensile stress during installation and operation. Suitable for comparatively high ambient temperature due to high maximum permissible conductor temperature.

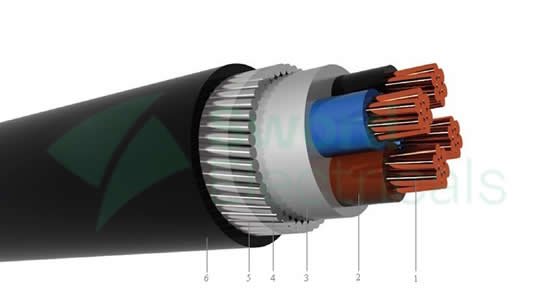

Construction;
1. Solid or stranded copper conductor
2. XLPE insulation
3. PVC filler
4. Galvanized round steel wires
5. Polyester tape
6. PVC outer sheath
Construction;
|
Technical Features
|
|
Rated Cross Section
|
Overall Diameter of Cable (Approx)
|
Current Carrying Capacity
|
Conductor DC Resistance
|
Short Circuit Current
|
Net Weight (Approx)
|
Delivery Length (Approx)
|
|
mm2
|
mm
|
|
|
ohm/km (20°C)
|
ohm/km (90°C)
|
kA (1 sn)
|
kg/km
|
mt
|
|
Air
|
Ground
|
|
1 x 10
|
12,90
|
81
|
91
|
1,83
|
2,333
|
1,43
|
355
|
1000
|
|
1 x 16
|
13,60
|
109
|
117
|
1,15
|
1,466
|
2,29
|
420
|
1000
|
|
1 x 25
|
16,20
|
146
|
150
|
0,727
|
0,927
|
3,58
|
660
|
1000
|
|
1 x 35
|
17,20
|
179
|
179
|
0,524
|
0,668
|
5,01
|
800
|
1000
|
|
1 x 50
|
18,30
|
218
|
211
|
0,387
|
0,493
|
7,15
|
950
|
1000
|
|
1 x 70
|
20,40
|
275
|
257
|
0,268
|
0,342
|
10,01
|
1.230
|
1000
|
|
1 x 95
|
22,90
|
336
|
304
|
0,193
|
0,246
|
13,59
|
1.640
|
1000
|
|
1 x 120
|
24,50
|
388
|
341
|
0,153
|
0,195
|
17,16
|
1.940
|
1000
|
|
1 x 150
|
26,30
|
438
|
377
|
0,124
|
0,158
|
21,45
|
2.280
|
1000
|
|
1 x 185
|
28,70
|
501
|
418
|
0,0991
|
0,126
|
26,46
|
2.750
|
1000
|
|
1 x 240
|
31,40
|
580
|
469
|
0,0754
|
0,096
|
34,32
|
3.380
|
1000
|
|
1 x 300
|
34,90
|
654
|
514
|
0,0601
|
0,077
|
42,90
|
4.320
|
1000
|
|
1 x 400
|
38,60
|
733
|
565
|
0,0470
|
0,060
|
57,20
|
5.320
|
1000
|
|
1 x 500
|
42,30
|
825
|
623
|
0,0366
|
0,047
|
71,50
|
6.510
|
500
|
|
1 x 630
|
48,60
|
934
|
690
|
0,0283
|
0,036
|
90,09
|
8.570
|
500
|
|
2 x 1,5
|
12,80
|
26
|
31
|
12,1
|
15,429
|
0,21
|
310
|
1000
|
|
2 x 2,5
|
13,60
|
35
|
40
|
7,41
|
9,448
|
0,36
|
360
|
1000
|
|
2 x 4
|
14,40
|
45
|
52
|
4,61
|
5,878
|
0,57
|
420
|
1000
|
|
2 x 6
|
16,20
|
57
|
65
|
3,08
|
3,927
|
0,86
|
590
|
1000
|
|
2 x 10
|
18,60
|
78
|
89
|
1,83
|
2,333
|
1,43
|
790
|
1000
|
|
2 x 16
|
20,00
|
105
|
115
|
1,15
|
1,466
|
2,29
|
980
|
1000
|
|
2 x 25
|
24,30
|
141
|
148
|
0,727
|
0,927
|
3,58
|
1.490
|
1000
|
|
2 x 35
|
26,30
|
172
|
178
|
0,524
|
0,668
|
5,01
|
1.820
|
1000
|
|
2 x 50
|
28,70
|
210
|
210
|
0,387
|
0,493
|
7,15
|
2.210
|
1000
|
|
2 x 70
|
34,10
|
265
|
257
|
0,268
|
0,342
|
10,01
|
3.180
|
1000
|
|
2 x 95
|
38,30
|
325
|
306
|
0,193
|
0,246
|
13,59
|
4.040
|
1000
|
|
2 x 120
|
41,70
|
376
|
345
|
0,153
|
0,195
|
17,16
|
4.820
|
1000
|
|
2 x 150
|
46,60
|
427
|
384
|
0,124
|
0,158
|
21,45
|
6.140
|
1000
|
|
2 x 185
|
51,80
|
491
|
430
|
0,0991
|
0,126
|
26,46
|
7.530
|
1000
|
|
2 x 240
|
57,00
|
573
|
489
|
0,0754
|
0,096
|
34,32
|
9.190
|
1000
|
|
2 x 300
|
62,80
|
649
|
542
|
0,0601
|
0,077
|
42,90
|
11.240
|
500
|
|
2 x 400
|
70,40
|
735
|
601
|
0,0470
|
0,060
|
57,20
|
13.890
|
500
|
|
3 x 1,5
|
13,30
|
25
|
31
|
12,1
|
15,429
|
0,21
|
340
|
1000
|
|
3 x 2,5
|
14,20
|
33
|
40
|
7,41
|
9,448
|
0,36
|
405
|
1000
|
|
3 x 4
|
15,00
|
43
|
52
|
4,61
|
5,878
|
0,57
|
475
|
1000
|
|
3 x 6
|
16,90
|
54
|
65
|
3,08
|
3,927
|
0,86
|
670
|
1000
|
|
3 x 10
|
19,50
|
75
|
87
|
1,83
|
2,333
|
1,43
|
920
|
1000
|
|
3 x 16
|
21,70
|
100
|
113
|
1,15
|
1,466
|
2,29
|
1.250
|
1000
|
|
3 x 25
|
25,60
|
136
|
146
|
0,727
|
0,927
|
3,58
|
1.770
|
1000
|
|
3 x 35
|
28,00
|
165
|
176
|
0,524
|
0,668
|
5,01
|
2.200
|
1000
|
|
3 x 50
|
30,50
|
201
|
208
|
0,387
|
0,493
|
7,15
|
2.690
|
1000
|
|
3 x 70
|
36,70
|
255
|
256
|
0,268
|
0,342
|
10,01
|
3.950
|
1000
|
|
3 x 95
|
40,80
|
314
|
307
|
0,193
|
0,246
|
13,59
|
5.000
|
1000
|
|
3 x 120
|
45,50
|
364
|
349
|
0,153
|
0,195
|
17,16
|
6.330
|
1000
|
|
3 x 150
|
50,00
|
416
|
391
|
0,124
|
0,158
|
21,45
|
7.640
|
1000
|
|
3 x 185
|
55,20
|
480
|
442
|
0,0991
|
0,126
|
26,46
|
9.340
|
1000
|
|
3 x 240
|
61,40
|
565
|
509
|
0,0754
|
0,096
|
34,32
|
11.590
|
1000
|
|
3 x 300
|
67,20
|
643
|
569
|
0,0601
|
0,077
|
42,90
|
14.100
|
500
|
|
3 x 400
|
76,90
|
737
|
637
|
0,0470
|
0,060
|
57,20
|
18.440
|
500
|
|
3 x 10 + 6
|
20,50
|
75
|
87
|
1,83
|
2,333
|
1,43
|
1.020
|
1000
|
|
3 x 16 + 10
|
22,80
|
100
|
113
|
1,15
|
1,466
|
2,29
|
1.400
|
1000
|
|
3 x 25 + 16
|
26,50
|
136
|
146
|
0,727
|
0,927
|
3,58
|
1.940
|
1000
|
|
3 x 35 + 16
|
28,60
|
165
|
176
|
0,524
|
0,668
|
5,01
|
2.360
|
1000
|
|
3 x 50 + 25
|
31,80
|
201
|
208
|
0,387
|
0,493
|
7,15
|
3.000
|
1000
|
|
3 x 70 + 35
|
37,90
|
255
|
256
|
0,268
|
0,342
|
10,01
|
4.340
|
1000
|
|
3 x 95 + 50
|
42,20
|
314
|
307
|
0,193
|
0,246
|
13,59
|
5.500
|
1000
|
|
3 x 120 + 70
|
48,10
|
364
|
349
|
0,153
|
0,195
|
17,16
|
7.190
|
1000
|
|
3 x 150 + 70
|
51,50
|
416
|
391
|
0,124
|
0,158
|
21,45
|
8.320
|
1000
|
|
3 x 185 + 95
|
56,80
|
480
|
442
|
0,0991
|
0,126
|
26,46
|
10.250
|
1000
|
|
3 x 240 + 120
|
63,10
|
565
|
509
|
0,0754
|
0,096
|
34,32
|
12.700
|
1000
|
|
3 x 300 + 150
|
69,10
|
643
|
569
|
0,0601
|
0,077
|
42,90
|
15.490
|
500
|
|
4 x 1,5
|
14,00
|
25
|
31
|
12,1
|
15,429
|
0,21
|
380
|
1000
|
|
4 x 2,5
|
15,00
|
33
|
40
|
7,41
|
9,448
|
0,36
|
455
|
1000
|
|
4 x 4
|
16,80
|
43
|
52
|
4,61
|
5,878
|
0,57
|
650
|
1000
|
|
4 x 6
|
18,00
|
54
|
65
|
3,08
|
3,927
|
0,86
|
780
|
1000
|
|
4 x 10
|
20,90
|
75
|
87
|
1,83
|
2,333
|
1,43
|
1.080
|
1000
|
|
4 x 16
|
23,30
|
100
|
113
|
1,15
|
1,466
|
2,29
|
1.480
|
1000
|
|
4 x 25
|
27,80
|
136
|
146
|
0,727
|
0,927
|
3,58
|
2.140
|
1000
|
|
4 x 35
|
30,40
|
165
|
176
|
0,524
|
0,668
|
5,01
|
2.660
|
1000
|
|
4 x 50
|
34,10
|
201
|
208
|
0,387
|
0,493
|
7,15
|
3.520
|
1000
|
|
4 x 70
|
40,00
|
255
|
256
|
0,268
|
0,342
|
10,01
|
4.830
|
1000
|
|
4 x 95
|
45,60
|
314
|
307
|
0,193
|
0,246
|
13,59
|
6.490
|
1000
|
|
4 x 120
|
50,10
|
364
|
349
|
0,153
|
0,195
|
17,16
|
7.880
|
1000
|
|
4 x 150
|
54,90
|
416
|
391
|
0,124
|
0,158
|
21,45
|
9.430
|
1000
|
|
4 x 185
|
61,00
|
480
|
442
|
0,0991
|
0,126
|
26,46
|
11.630
|
1000
|
|
4 x 240
|
67,40
|
565
|
509
|
0,0754
|
0,096
|
34,32
|
14.410
|
1000
|
|
4 x 300
|
75,10
|
643
|
569
|
0,0601
|
0,077
|
42,90
|
18.410
|
500
|
|
4 x 400
|
84,80
|
737
|
637
|
0,0470
|
0,060
|
57,20
|
23.020
|
500
|
|
4 x 10 + 6
|
22,70
|
75
|
87
|
1,83
|
2,333
|
1,43
|
1.300
|
1000
|
|
4 x 16 + 10
|
24,60
|
100
|
113
|
1,15
|
1,466
|
2,29
|
1.660
|
1000
|
|
4 x 25 + 16
|
29,00
|
136
|
146
|
0,727
|
0,927
|
3,58
|
2.350
|
1000
|
|
4 x 35 + 16
|
31,40
|
165
|
176
|
0,524
|
0,668
|
5,01
|
2.870
|
1000
|
|
4 x 50 + 25
|
36,30
|
201
|
208
|
0,387
|
0,493
|
7,15
|
3.940
|
1000
|
|
4 x 70 + 35
|
41,60
|
255
|
256
|
0,268
|
0,342
|
10,01
|
5.270
|
1000
|
|
4 x 95 + 50
|
47,80
|
314
|
307
|
0,193
|
0,246
|
13,59
|
7.170
|
1000
|
|
4 x 120 + 70
|
52,80
|
364
|
349
|
0,153
|
0,195
|
17,16
|
8.780
|
1000
|
|
4 x 150 + 70
|
56,90
|
416
|
391
|
0,124
|
0,158
|
21,45
|
10.260
|
1000
|
|
4 x 185 + 95
|
63,60
|
480
|
442
|
0,0991
|
0,126
|
26,46
|
12.770
|
1000
|
|
4 x 240 + 120
|
70,30
|
565
|
509
|
0,0754
|
0,096
|
34,32
|
15.810
|
500
|
|
4 x 300 + 150
|
78,80
|
643
|
569
|
0,0601
|
0,077
|
42,90
|
20.330
|
500
|
|
5 x 1,5
|
14,80
|
25
|
31
|
12,1
|
15,429
|
0,21
|
430
|
1000
|
|
5 x 2,5
|
16,70
|
33
|
40
|
7,41
|
9,448
|
0,36
|
620
|
1000
|
|
5x 4
|
17,80
|
43
|
52
|
4,61
|
5,878
|
0,57
|
730
|
1000
|
|
5x 6
|
19,10
|
54
|
65
|
3,08
|
3,927
|
0,86
|
890
|
1000
|
|
5 x 10
|
23,10
|
75
|
87
|
1,83
|
2,333
|
1,43
|
1.370
|
1000
|
|
5 x 16
|
24,90
|
100
|
113
|
1,15
|
1,466
|
2,29
|
1.720
|
1000
|
|
5 x 25
|
30,20
|
136
|
146
|
0,727
|
0,927
|
3,58
|
2.530
|
1000
|
|
5 x 35
|
33,90
|
165
|
176
|
0,524
|
0,668
|
5,01
|
3.400
|
1000
|
|
5 x 50
|
37,50
|
201
|
208
|
0,387
|
0,493
|
7,15
|
4.260
|
1000
|
|
5 x 70
|
43,50
|
255
|
256
|
0,268
|
0,342
|
10,01
|
5.770
|
1000
|
|
5 x 95
|
50,10
|
314
|
307
|
0,193
|
0,246
|
13,59
|
7.880
|
1000
|
|
5 x 120
|
54,80
|
364
|
349
|
0,153
|
0,195
|
17,16
|
9.460
|
1000
|
|
5 x 150
|
60,50
|
416
|
391
|
0,124
|
0,158
|
21,45
|
11.470
|
1000
|
|
5 x 185
|
66,80
|
480
|
442
|
0,0991
|
0,126
|
26,46
|
14.060
|
500
|
|
5 x 240
|
75,20
|
565
|
509
|
0,0754
|
0,096
|
34,32
|
18.230
|
500
|
|
7 x 1,5
|
16,40
|
16
|
19
|
12,1
|
15,429
|
0,21
|
580
|
1000
|
|
7 x 2,5
|
17,60
|
21
|
24
|
7,41
|
9,448
|
0,36
|
700
|
1000
|
|
10 x 1,5
|
19,20
|
14
|
16
|
12,1
|
15,429
|
0,21
|
790
|
1000
|
|
10 x 2,5
|
20,80
|
18
|
20
|
7,41
|
9,448
|
0,36
|
960
|
1000
|
|
12 x 1,5
|
19,70
|
13
|
15
|
12,1
|
15,429
|
0,21
|
830
|
1000
|
|
12 x 2,5
|
22,10
|
17
|
19
|
7,41
|
9,448
|
0,36
|
1.140
|
1000
|
|
14 x 1,5
|
20,40
|
13
|
14
|
12,1
|
15,429
|
0,21
|
900
|
1000
|
|
14 x 2,5
|
22,90
|
17
|
18
|
7,41
|
9,448
|
0,36
|
1.220
|
1000
|
|
19 x 1,5
|
22,70
|
11
|
12
|
12,1
|
15,429
|
0,21
|
1.160
|
1000
|
|
19 x 2,5
|
24,70
|
15
|
16
|
7,41
|
9,448
|
0,36
|
1.450
|
1000
|
|
21 x 1,5
|
23,70
|
11
|
12
|
12,1
|
15,429
|
0,21
|
1.260
|
1000
|
|
21 x 2,5
|
25,80
|
14
|
15
|
7,41
|
9,448
|
0,36
|
1.580
|
1000
|
|
24 x 1,5
|
25,50
|
10
|
11
|
12,1
|
15,429
|
0,21
|
1.450
|
1000
|
|
24 x 2,5
|
28,10
|
13
|
14
|
7,41
|
9,448
|
0,36
|
1.830
|
1000
|
|
30 x 1,5
|
26,90
|
9
|
10
|
12,1
|
15,429
|
0,21
|
1.610
|
1000
|
|
30 x 2,5
|
29,50
|
12
|
13
|
7,41
|
9,448
|
0,36
|
2.050
|
1000
|
|
40 x 1,5
|
29,50
|
9
|
9
|
12,1
|
15,429
|
0,21
|
1.940
|
1000
|
|
40 x 2,5
|
33,60
|
12
|
12
|
7,41
|
9,448
|
0,36
|
2.720
|
1000
|
