Application;

For connection and distribution systems.

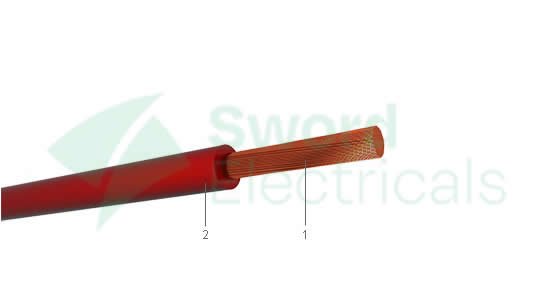

1.Flexible copper conductor
2.PVC insulation

Construction;

Technical Data
Rated Cross Section	Overall Diameter of Cable (Approx)	Current Carrying Capacity		Conductor DC Resistance	Net Weight (Approx)	Delivery Length (Approx)
mm2	mm	Air	Conduit	ohm/km (20°C)	kg/km	mt
H05V-K (300/500V)
0,5	2,20	12	3	39	9	100
0,75	2,30	15	6	26	11	100
1	2,50	19	10	19,5	14	100
H07V-K (450/750V)
1,5	2,90	24	15	13,3	19	100
2,5	3,60	32	20	7,98	31	100
4	4,10	42	26	4,95	46	100
6	4,40	54	34	3,3	61	100
10	5,70	73	46	1,91	105	100
16	7,10	98	61	1,21	170	100
25	7,90	129	80	0,78	250	1000
35	9,90	158	99	0,554	370	1000
50	11,80	198	119	0,386	500	1000
70	13,80	245	151	0,272	720	1000
95	15,90	292	182	0,206	970	1000
120	17,70	344	210	0,161	1.200	1000
150	19,40	391	240	0,129	1.470	1000
185	21,50	448	273	0,106	1.820	1000
240	24,50	528	321	0,0801	2.390	1000
300	27,30	608	367	0,0641	3.020	1000
